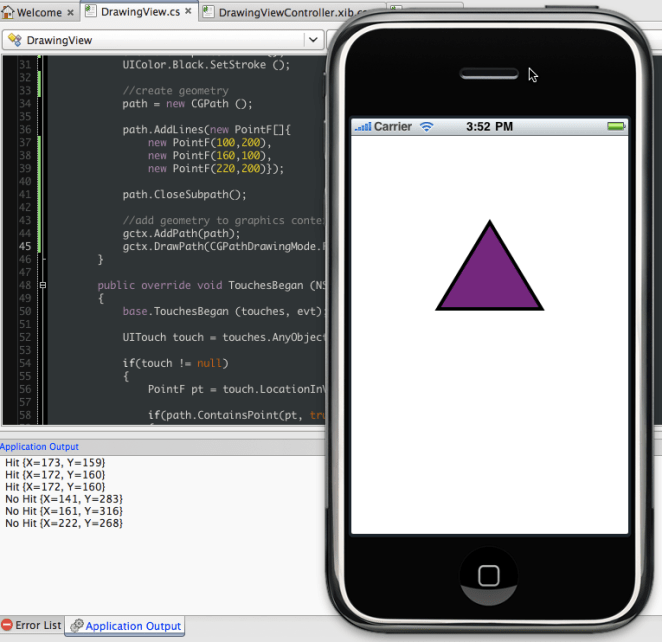

CoreGraphics allows you to do custom drawing on the iPhone. MonoTouch exposes this in the namespace MonoTouch.CoreGraphics. This allows you to do all sorts of custom drawing. Here I’ll present an introductory example that shows how to draw a triangle in a custom view along with determining if the triangle was touched. Even as drawing complexity increases, you’ll find the code to be quite similar in general, just that there will be more of it.
For the example I created a new MonoTouch window-based app and added a new ViewController from the ViewController with View template, naming it DrawingViewController.xib. I then added a class called DrawingView, subclassed from UIView, that I wired up in Interface Builder to be the view under DrawingViewController. After that I decorated the DrawingView class with the Resigister attribute so it will be available for the Objective-C runtime. As it’s being created from the xib, I also included the constructor that takes an IntPtr. See some of the tutorials on the monotouch wiki or the articles aggregated at monotouch.info if you need to review the details of how to wire things up.
With the DrawingView class in place, you can override the Draw (RectangleF rect) method to implement custom drawing. You implement what you want to draw in the Draw method and CocoaTouch will call it at runtime during event loop processing. To draw you need to:
- Get a graphics context
- Set up drawing attributes
- Create some geometry from drawing primitives
- Call a Draw or Stroke method
Here’s a simple example that draws a rectangle and fills it with a color:
using System;
using MonoTouch.UIKit;
using System.Drawing;
using MonoTouch.CoreGraphics;
using MonoTouch.Foundation;
namespace CoreGraphicsDemo
{
[Register("DrawingView")]
public class DrawingView : UIView
{
CGPath path;
public DrawingView (IntPtr p) : base(p)
{
}
public override void Draw (RectangleF rect)
{
base.Draw (rect);
//get graphics context
CGContext gctx = UIGraphics.GetCurrentContext ();
//set up drawing attributes
gctx.SetLineWidth(4);
UIColor.Purple.SetFill ();
UIColor.Black.SetStroke ();
//create geometry
path = new CGPath ();
path.AddLines(new PointF[]{
new PointF(100,200),
new PointF(160,100),
new PointF(220,200)});
path.CloseSubpath();
//add geometry to graphics context and draw it
gctx.AddPath(path);
gctx.DrawPath(CGPathDrawingMode.FillStroke);
}
...
To respond to touches on the triangle you can override TouchesBegan and make use of the LocationInView method on UITouch like this:
public override void TouchesBegan (NSSet touches, UIEvent evt)
{
base.TouchesBegan (touches, evt);
UITouch touch = touches.AnyObject as UITouch;
if(touch != null)
{
PointF pt = touch.LocationInView(this);
if(path.ContainsPoint(pt, true))
{
Console.WriteLine("Hit {0}", pt.ToString());
}
else
{
Console.WriteLine("No Hit {0}", pt.ToString());
}
}
}
